FE 400 VICO-3

FE 400 Vico – 3 Inox

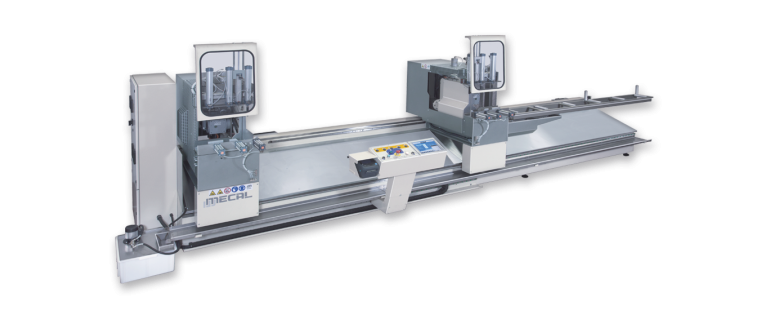

Double head mitre saw with disappearing blades specifically studied for the tubular steel shapes.
  • 7 axes controlled by NC [cutting length (1), blades inclination (2), rotation speed of the blades (2), forward speed blades (2)]
  • Fixed cutting unit on the left
  • Powered positioning of the mobile cutting unit
  • Electronic positioning of the cutting units on any angle within 45° and 135°.
FE 400 VICO-3

CARACTÉRISTIQUES

FE 400 VICO-3

FEATURES - TDC 622 EDGEMASTER-5A

  • Wide cutting capacity also with blades Ø 600 mm
  • Tools lubrication with Minimal Quantity Lubrication system (MQL system)
  • Dynamic protection guards for a total covering of the cutting area
  • The locking systems of the profile are mobile with automatic movements linked to the angular positions of the cutting bases.
  • Equipped with a motorized conveyor belt for swarfs and wastes (cut-proof PVC).
  • Pre-arranged to connect an exhaust extractor for swarfs and oily mist.

VIDÉO

FE 400 VICO-3

ÉQUIPEMENT

EQUIPMENT - TDC 622 EDGEMASTER-5A

STANDARD EQUIPMENT

  • Mobile roller conveyor (3,5 m)
  • TCT saw blade Ø 600 mm (n. 2)
  • Pneumatic vertical vices (no. 2 pairs)
  • Minimal Quantity Lubrication system (MQL system)
  • PVC‐belt conveyor for swarfs and wastes
  • Compressed air treatment group (Air filter/Lubricator/Regulator)

OPTIONAL ACCESSORIES

  • TCT saw blade Ø 600 mm
  • Hinging workpiece support (automatically operating)
  • Movable vacuum cleaner
  • Kit for automatic start of a vacuum cleaner
  • Thermal transfer printer
  • Preparation kit for use of a printer
  • Bar code reading device
FE 400 VICO-3

LOGICIEL

FE 400 VICO-3

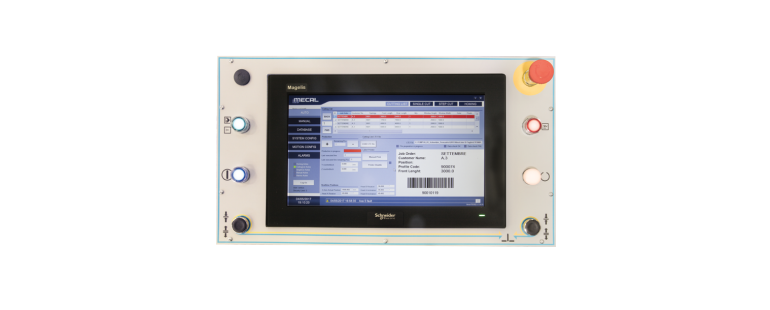

EQUIPPED WITH MS WINDOWS XP COMPATIBLE COMPUTER - TDC 622 EDGEMASTER-5A
